地暖温控系统

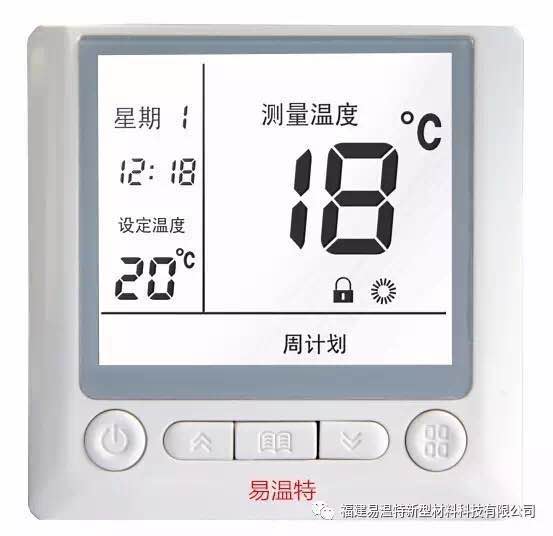

温控系统(图1)





  温控系统由温控器和温度传感器配套组成。它通过所测量的环境温度与设定温度的比较结果,控制电采暖系统,调节环境温度以达到舒适和节能的目的。温控器外观设计新颖美观,性能稳定可靠,安装使用方便。

  Temperature Control System is completed with the temperature controller and temperature sensor.By comparing the measured ambient temperature and setting temperature, it controls electric heatingsystem and aesthetic design for the appearance,stable and reliable parformance,and convenient installationand operation.

性能特点

  使用方便:明装设计,方便安装维护。智能控制:大屏幕液晶显示,触摸感应式按键,便于调节使用。功能齐全:具有提前预热、按键锁定、定时开关、5+2时段温度设置、双温双控、低温保护等功能。适用范围广:采用宽幅电压设计,适用85V-260V电压范围。


  Convenience of use: with the design of open installat; easy for installation &maintenance.Intelligent control: big screen wintn LCD display,touch-inductive buttons,make it easy to adjust for useComplete functions: have the functions of preheating、locking keys、time switch、5+2 temperaturesetting、pairs of dual-temperature control、cold protection,etc.Wide adaptability: using the design of wide voltage,with the adaptive voltage range of 85v-260v.

电路系统

  分支连接电缆是连接碳纤维发热系统的专用导线,为整个系统提供电源,对整个电路构成回路。整个电路系统通过分支电缆的链接,构成一个整体双并联结构。绝缘防水插头是碳纤维发热系统的配套组成部分,快速链接插头,既保证了高等级的防水、抗压、防腐蚀,更使得安装操作方便快捷,保证采暖系统的运行安全。分支连接电缆及绝缘防水插头,均采用优质材料,具有绝缘、防水、耐高温高压、抗冲击,韧性好等优点。

  Branch connection cable is a special wire connecting the carbon fiber heating system, to provide powerfor the whole system, a circuit to the whole circuit. The whole circuit system through branch cable connection, constitute a whole double parallel structure.Insulation waterproof plug is supporting part of the carbon fiber heating system, fast connection plug, not only ensure the high level of waterproof, compressive strength, anticorrosion, more make the installationfast and convenient operation, ensure the safety operation of the heating system.Branch connection cable insulation and waterproof plug, adopt high quality material, insulation, waterproof, high temperature and high pressure resistance, impact resistance, good toughness, etc.
