抗压模板

  由公司自主研发,专门用于电热地暖系统干铺法的配套产品。模板表面设有安装槽,采用优质的纯PE材料,产品设计科学合理,美观耐用,能有效减少向下的热传导。

  Compressive template is our own product;it’s specially the supporting product of dry pave of the electricheating floor heating system.There is an install slot on the surface .Besides,it is made of high quality PEmateria and flame retardants.The desigh is rational and scientific,product is beautiful and durable,can effectivelyreduce the heat conduction downward.

性能特点

1、材质环保:采用全PE新材料及阻燃材料,无毒无污染、耐高温。
2、材质轻薄:2-3kg/㎡有效减轻楼房负荷,节约建筑成本;
3、承重强:采用蜂窝结构设计,使用更宽的(1.2mm)径路承重径线,承重大于2000kg/㎡,不变形,零维修;
4、热效高:通过蜂窝的隔热层进行隔热保温,加热迅速,60分钟内即可达到舒适温度,结构科学合理,纵横贯通,传热性好,温度均匀。
5、隔音无浮灰:蜂窝镂空设计,隔热隔音,不会产生浮灰。
6、使用寿命长:无毒无味,阻燃性好,使用寿命与地暖同长,可达50年。
7、使用方便:卡扣拼接,不移动,无踩踏摩擦、无噪音,铺设安装简便,效率高。

1.Environmental protection material:use new PE and flame resistance material,non-toxic,pollution-free,heat-resistant.
2.Thin material:2-3kg/㎡only,reduce building load effectively,save construction cost.
3.Strong load-bearing: adopt honeycomb design,use wider(1.2mm) route as load-bearing line.Bearing forceis over 2000kg/㎡,no distortion and zero maintenance
4.Highly efficient: Thermal insulation through the heat shield of honeycomb,heat rapidly,it can be suitable temperature within 60 minutes.Scientific and rational structure,excellent heat-transfer,balanced temperature.5.Sound insulation without float ash: honeycomb hollow out desigh ,heat and sound insulation,without float ash
6.Long service life: poison-free and odor - free,good flame resistance,the same long use life as Floor heating Thermostat,can be 50 years.
7.  Easy to use: Bayonet typen joining together,without moving.Without any stampede&rub and no noise.lnstallconveniently,high efficiency.

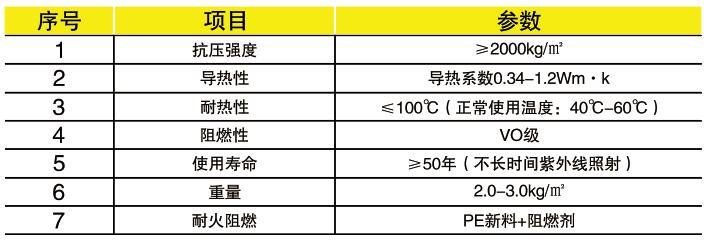

技术指标

抗压模板(图1)
